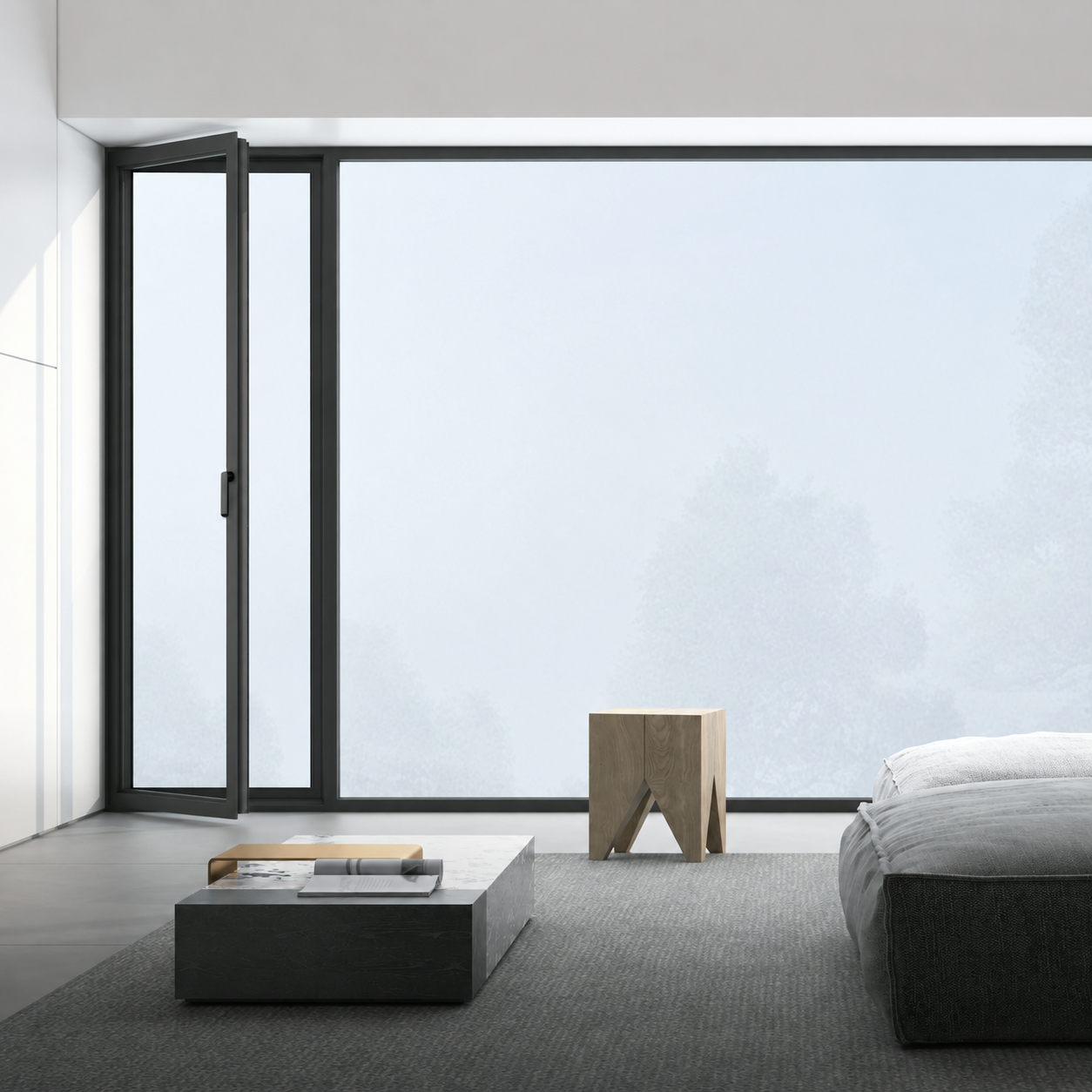

JN 60 Inward-Opening Window
An inward-opening aluminum window platform for apartments and hospitality projects that need convenient cleaning, controlled ventilation and a slender interior appearance.
System Overview
JN 60 is designed for practical rooms where the customer wants a reliable inward casement or tilt-and-turn function without giving up the clean lines of a modern aluminum window.
Opening configuration: Inward casement, tilt-and-turn, micro-ventilation or fixed-light combination
Design envelope: Typical operable sash envelope: 200–800 mm wide × 500–3,000 mm high; glass weight and hardware capacity govern the final size.
Glazing approach: Insulating glass, laminated safety glass and Low-E configurations selected to the thermal, acoustic and safety target.
Profile basis: 6063 architectural aluminum with project-selected thermal-break and seal configuration.
Project Perspective
Inward-opening windows are often chosen for a very ordinary reason: someone has to clean and operate them from inside a finished room. That detail affects more than convenience. The handle position, swing clearance, screen arrangement and blind line must all be coordinated before a fabricator drills the first hardware hole.
JN 60 gives project teams a clear platform for that coordination. For apartment and hotel work, we can review room use, furniture clearance, acoustic expectations and local safety requirements with the fabricator. The result is a window package that is easier to operate after installation, not simply a profile that looked acceptable in a cross-section drawing.
Technical Configuration
| Base alloy | 6063 architectural aluminum; final temper to drawing |
|---|---|
| System class | 60 mm class inward-opening platform |
| Sash width | 200–800 mm typical working envelope |
| Sash height | 500–3,000 mm typical working envelope |
| Glass reference | 5 + 18A + 5 mm is a common double-glass starting option |
| Design control | Final hardware capacity and opening restrictor requirement checked against sash weight |
Values are configuration inputs, not generic test certificates. Final requirements must be tied to the project standard, location, glass, hardware and completed assembly.
Available Options
- Ventilation: Tilt, turn, micro-ventilation or restricted opening
- Glass: Double glazing, laminated safety glass, Low-E
- Hardware: Project-matched multi-point locking and handle set
- Finish: Powder-coated, anodized or wood-grain surfaces
Typical Applications
- Apartments
- Hotels
- Student accommodation
- Bedrooms
- Balconies
Key Features
- Inward access supports safe cleaning from the room side
- Tilt-and-turn option separates ventilation from full opening
- Glazing and bead selection can follow local safety-glass requirements
- Compatible with concealed or visible hinge strategies
- Configured for fixed, operable and transom combinations
Frequently Asked Questions
Can JN 60 use a tilt-and-turn function?
Yes, subject to hardware selection and sash weight. We review the final glass build-up and sash dimensions before confirming the hardware set.
Can the window include an insect screen?
Yes. Specify whether the screen must be removable, sliding, retractable or integrated so the frame, sash and screen interfaces can be planned together.
